How many products does Orion 10 hold?

Orion 10 holds 350+ products in up to 60 varieties across 6 trays.

How much space does Orion 10 need?

The cabinet is 1,940 mm high, 880 mm wide and 760 mm deep, and weighs about 225 kg. Leave room in front for the door to open during refills.

How much power does Orion 10 use?

It draws about 422 W with refrigeration on and 24 W without, on 110–120 V or 220–240 V supply.

Should I choose Orion 10 or Orion 10 XL?

Both have a 10-inch touchscreen, 6 trays, up to 60 product varieties and cooling from 4°C to 25°C. Orion 10 holds 350+ products in an 880 mm wide cabinet; Orion 10 XL holds 500+ products and is 1,066 mm wide. Choose Orion 10 where space is tight or refills are frequent, and Orion 10 XL where footfall is high and you want fewer refill visits.

Budget-friendly vending

Orion 10 Smart Vending Machine

The everyday workhorse of the Wendor range. 350+ products, a 10-inch touchscreen and chilled shelves, in a cabinet slim enough for a pantry.

Get a quote See tech specs

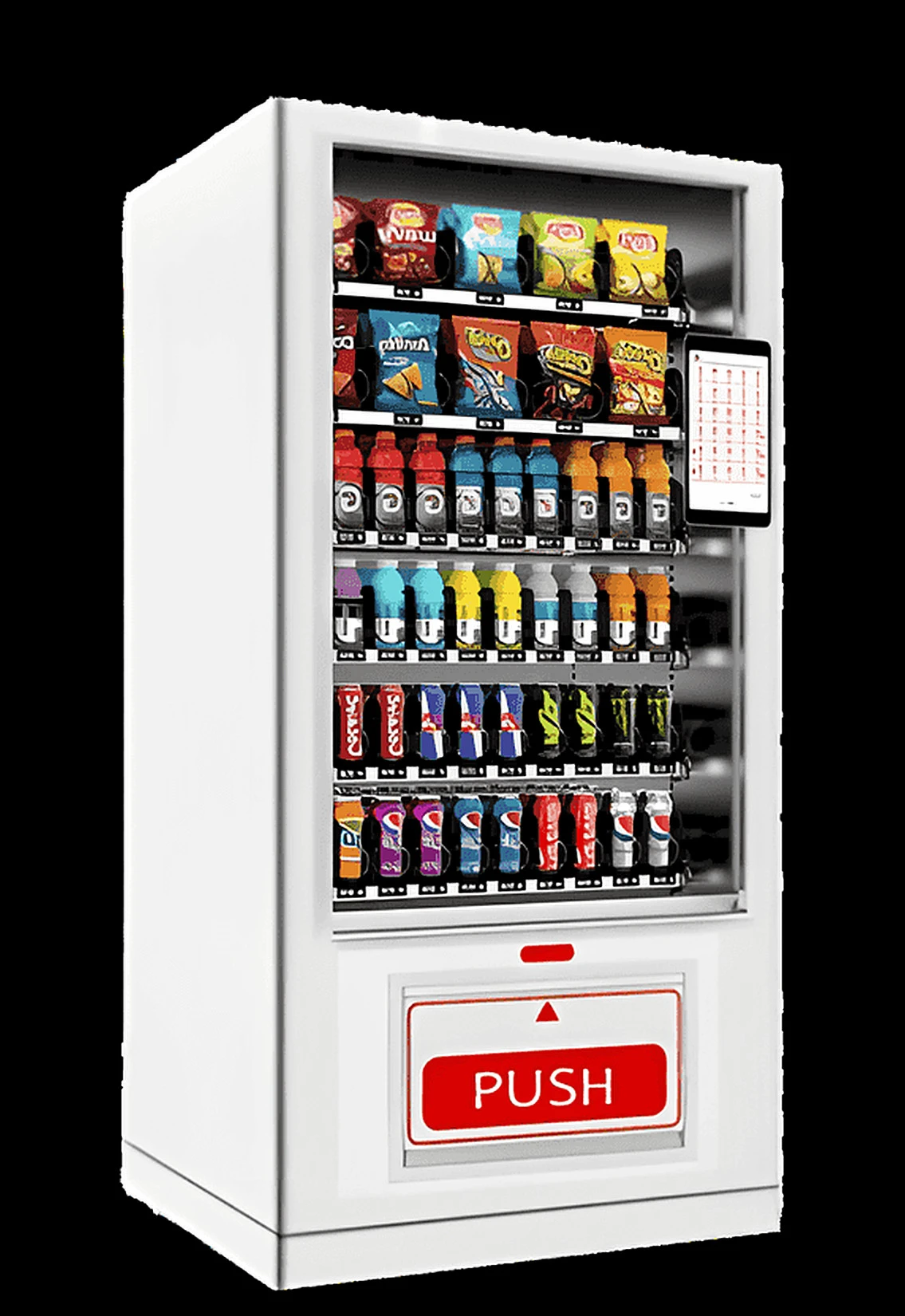

White Wendor Orion 10 smart vending machine on a black studio background

350+ products
60 varieties
880 mm wide
UPI checkout

Trusted by

Brands and institutions that run Wendor machines

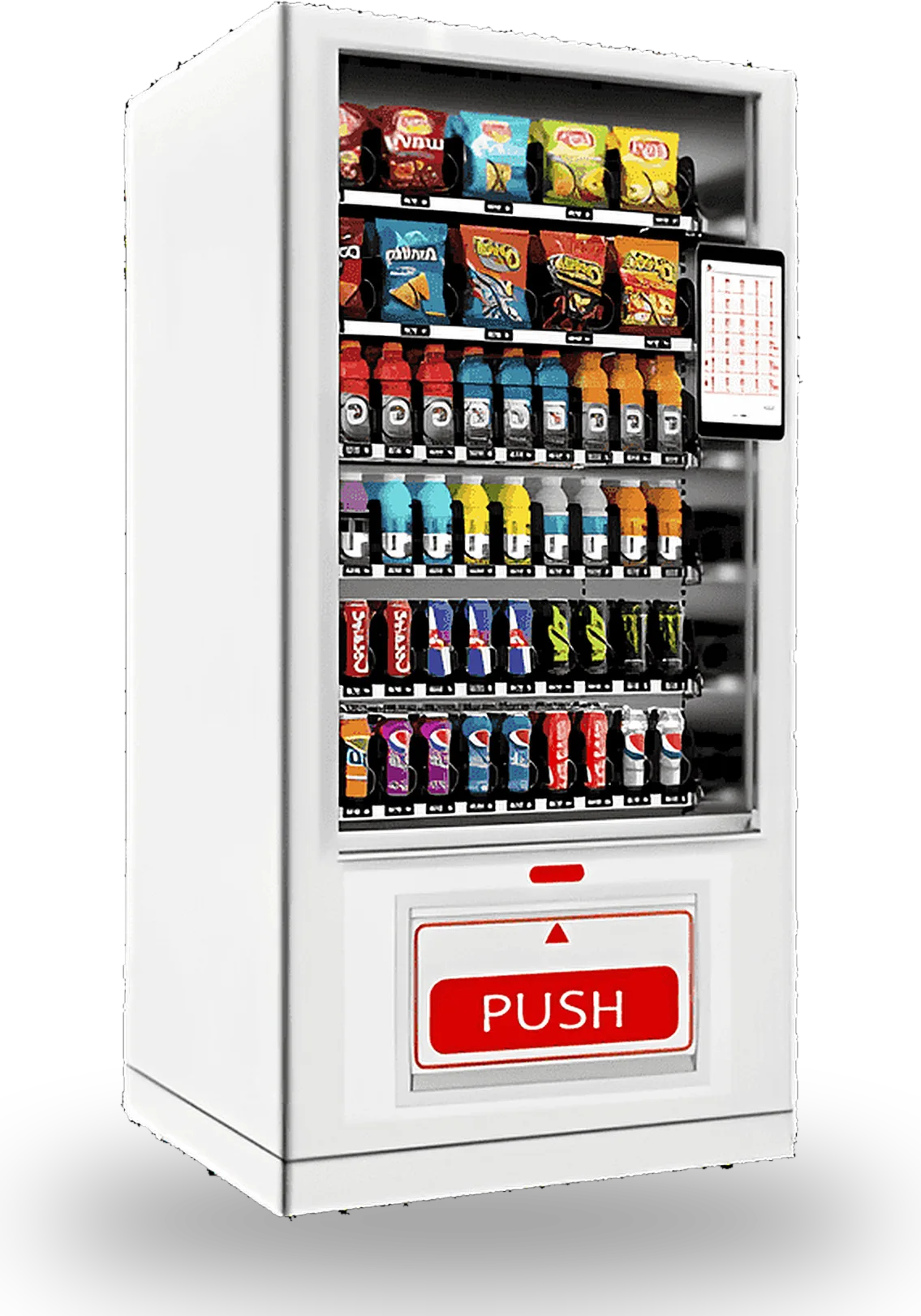

Big enough to feed a floor. Slim enough for the pantry. Orion 10 does the daily job, day after day, without fuss.

Products per fill: 350+
Product varieties: 60
Touchscreen: 10″
Cabinet width: 880 mm

Shown in White

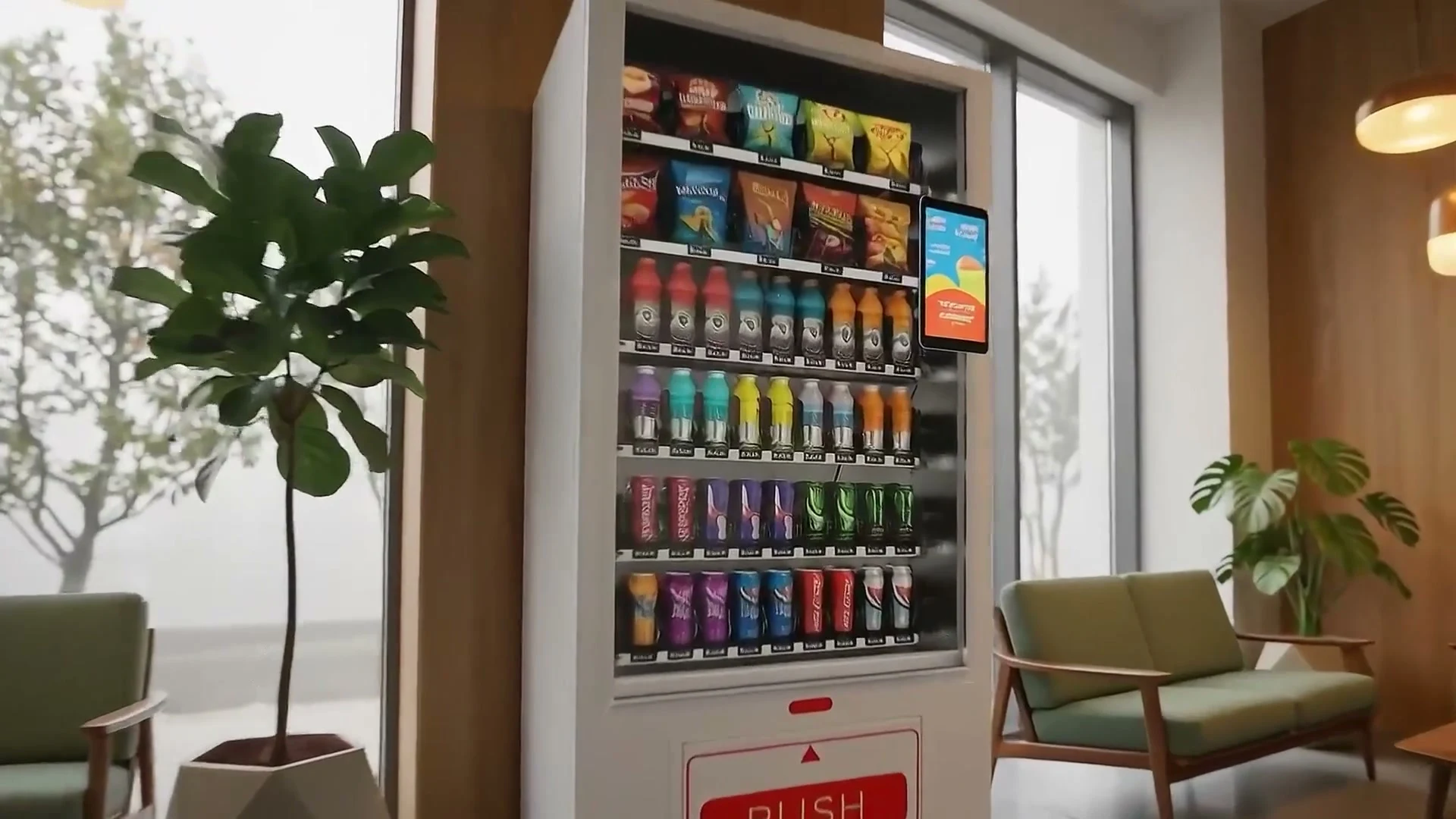

Quietly at home in any lounge.

A clean white cabinet, lit shelves and a small footprint. Orion 10 fits the room instead of fighting it.

How it works

Tap, pay, collect.

01

Browse on the touchscreen.

The 10-inch screen shows every product with its price, so shoppers find what they want in seconds.
02

Stock what sells.

Six adjustable trays hold up to 60 varieties, from chips and biscuits to bottles and cans.
03

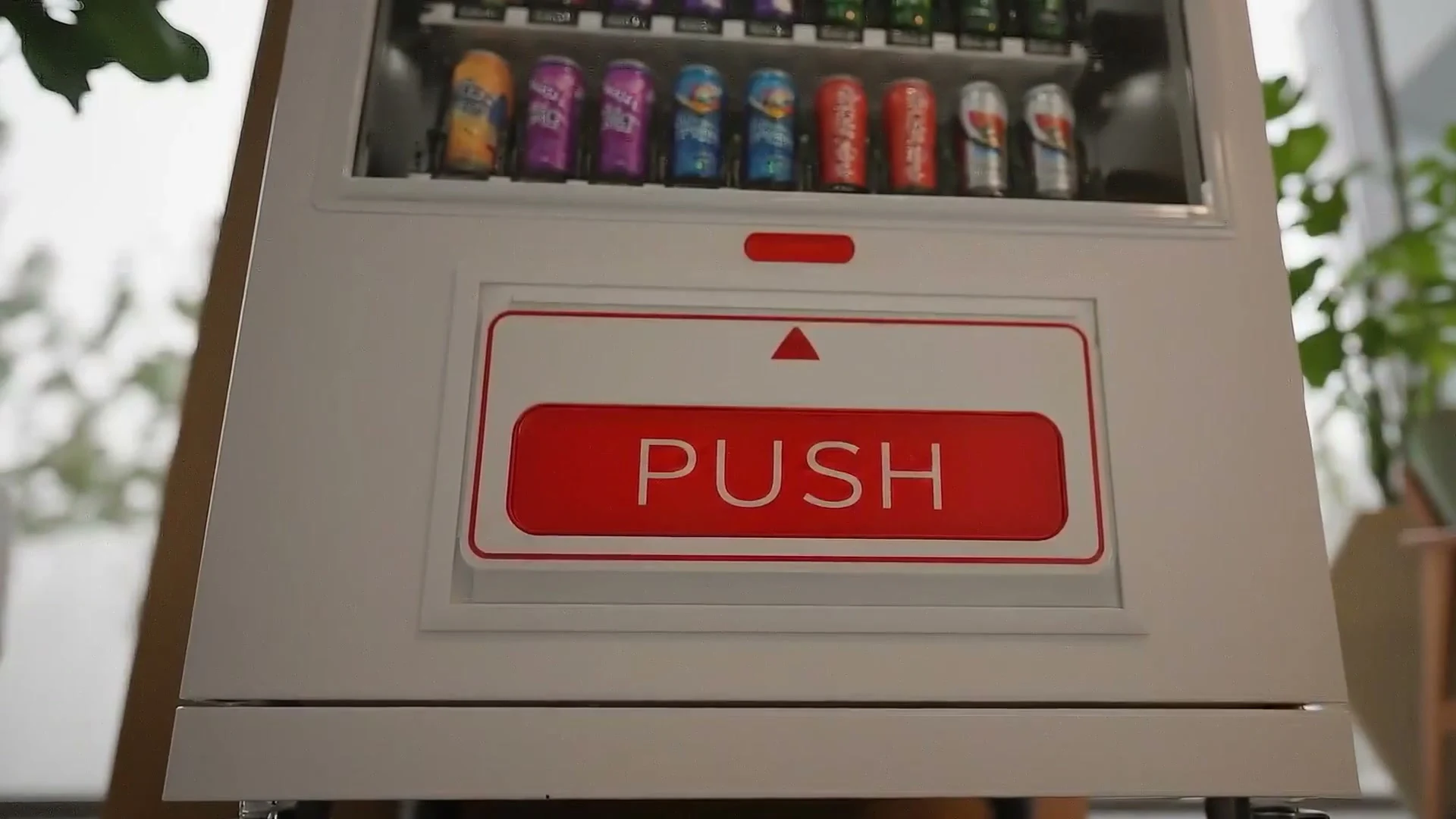

Collect from the PUSH bay.

Pay by UPI and the product drops to the wide pickup bay at the front. No cash, no change, no queue.

Versatile by design

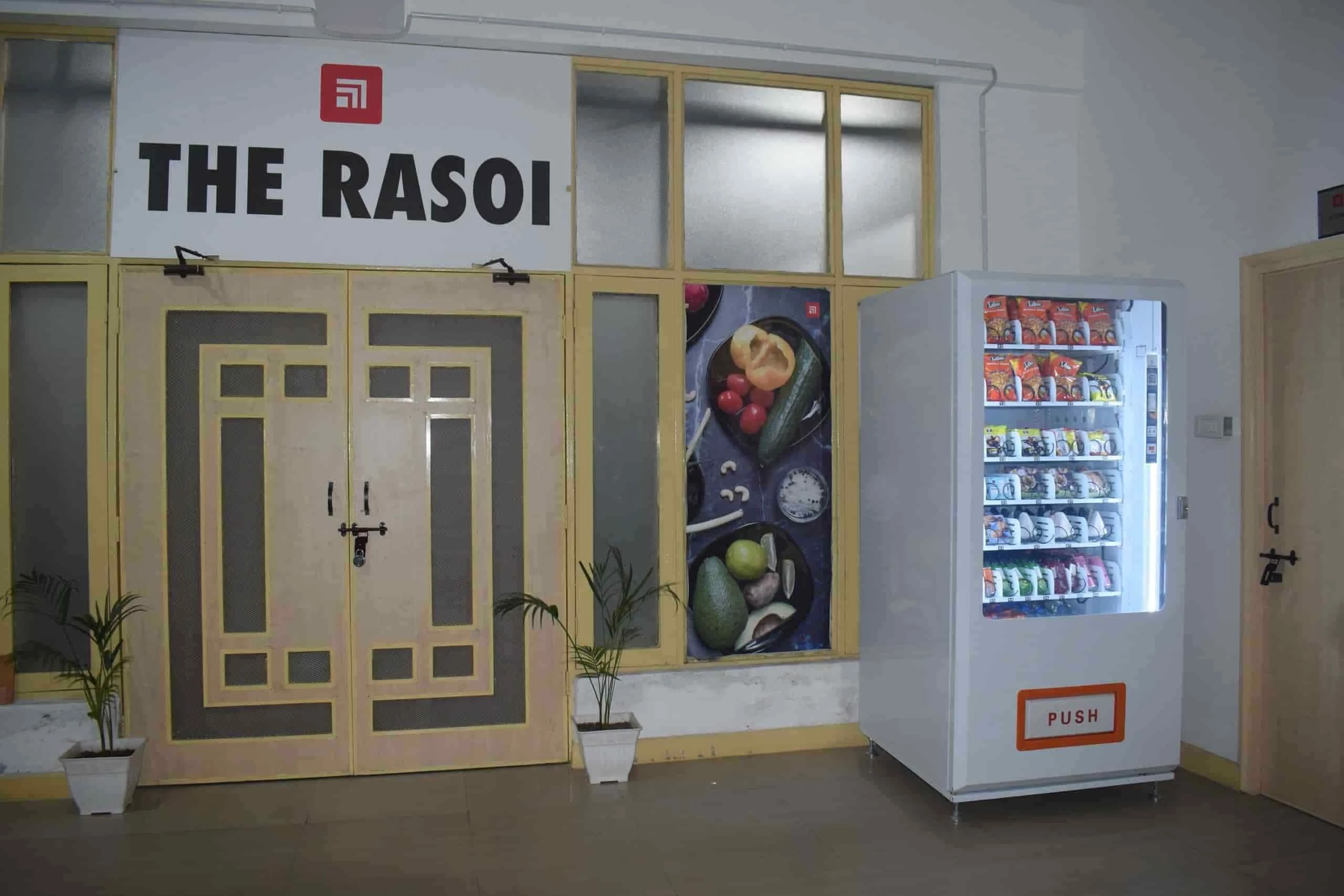

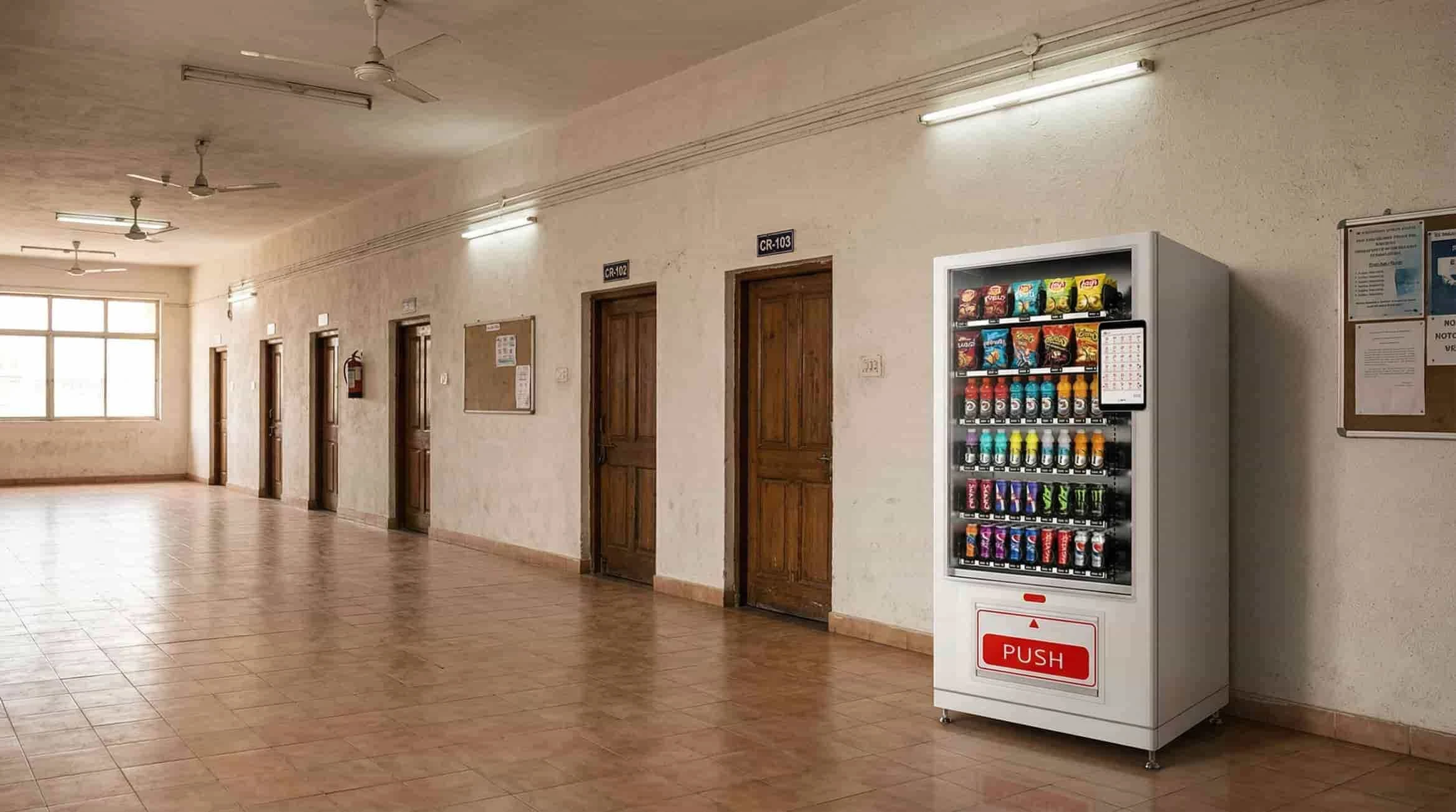

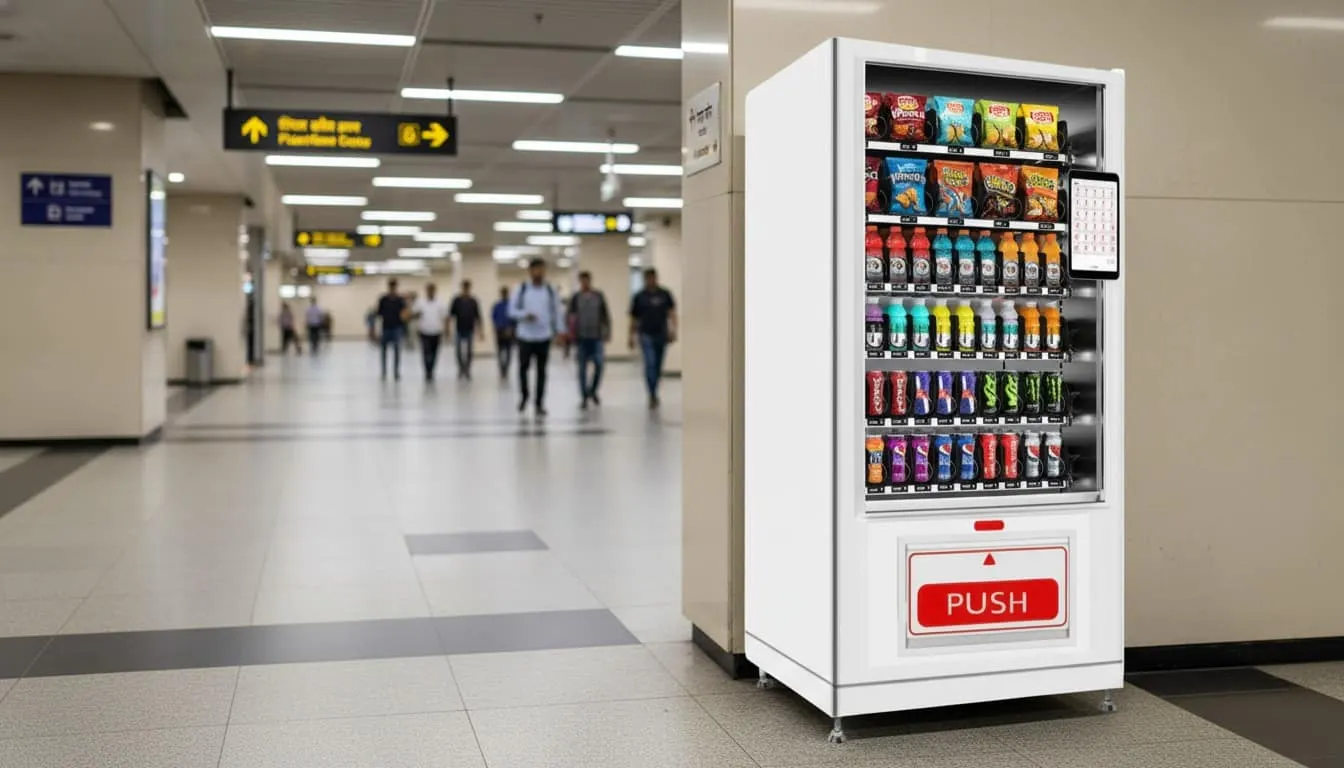

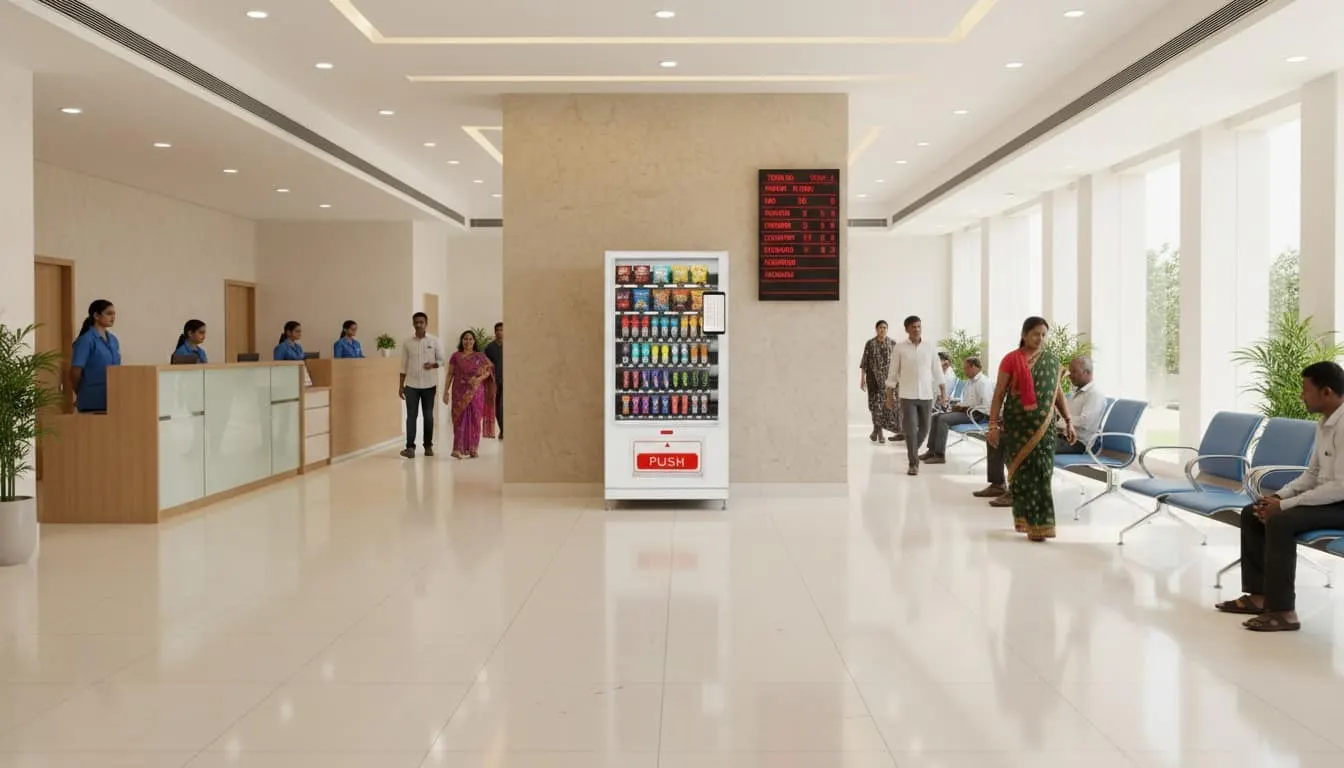

Wherever people take a break.

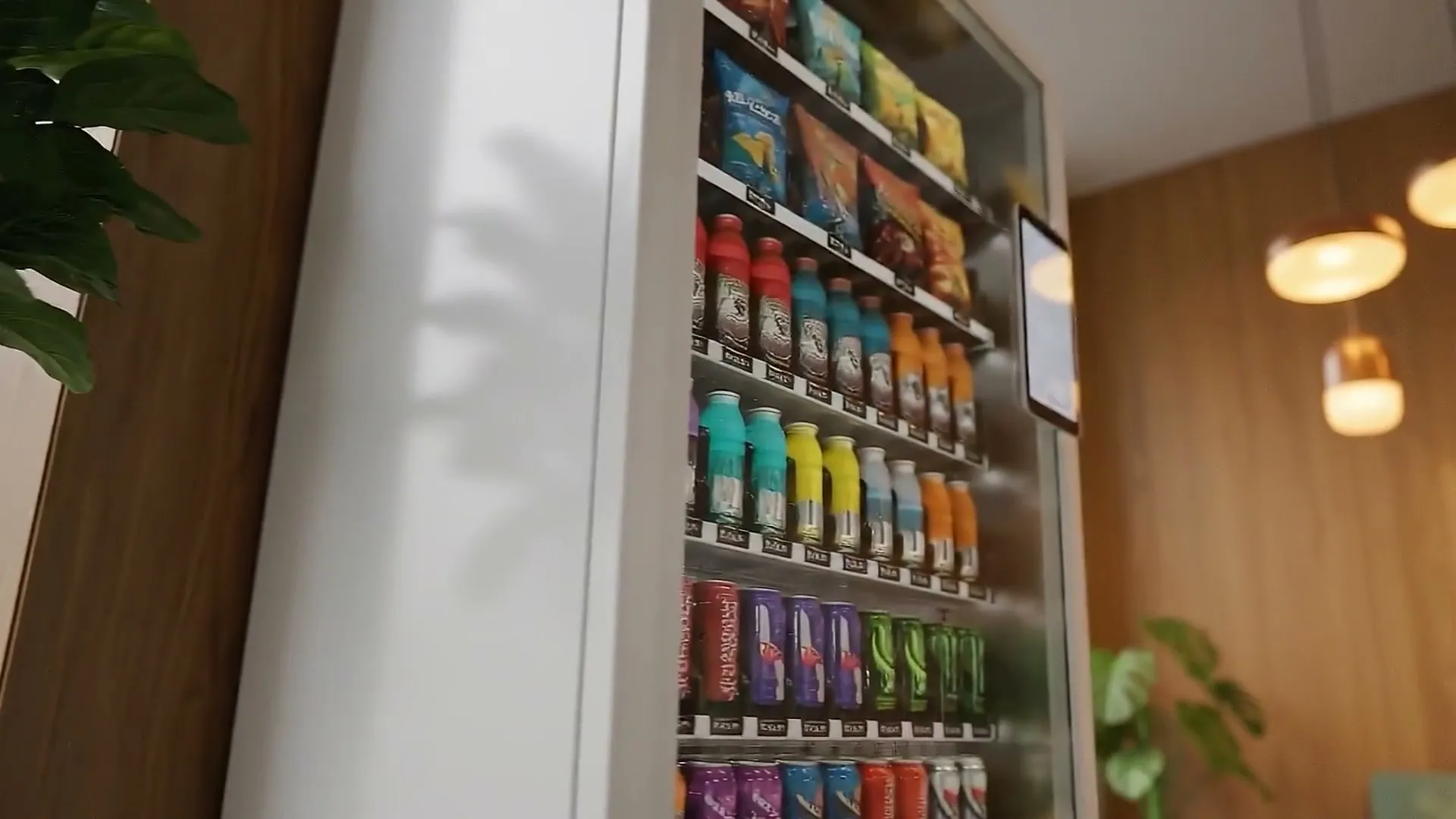

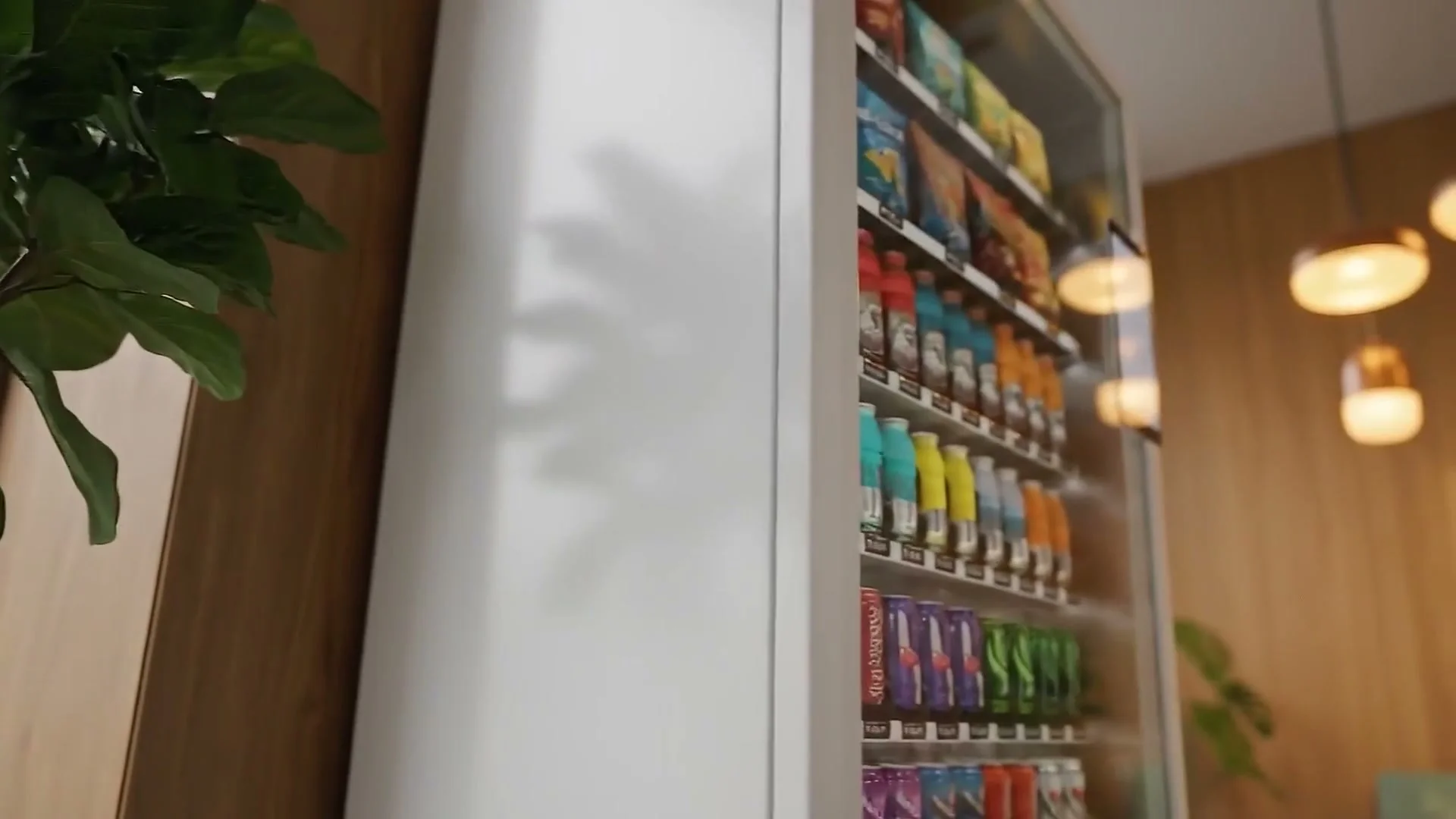

Chilled bottled drinks on Orion 10 shelves

Cooling

Cold drinks. Crisp snacks.

Set the cabinet anywhere from 4°C to 25°C, so bottles stay cold and packets stay fresh through a long Indian summer.

4°C lowest shelf temperature

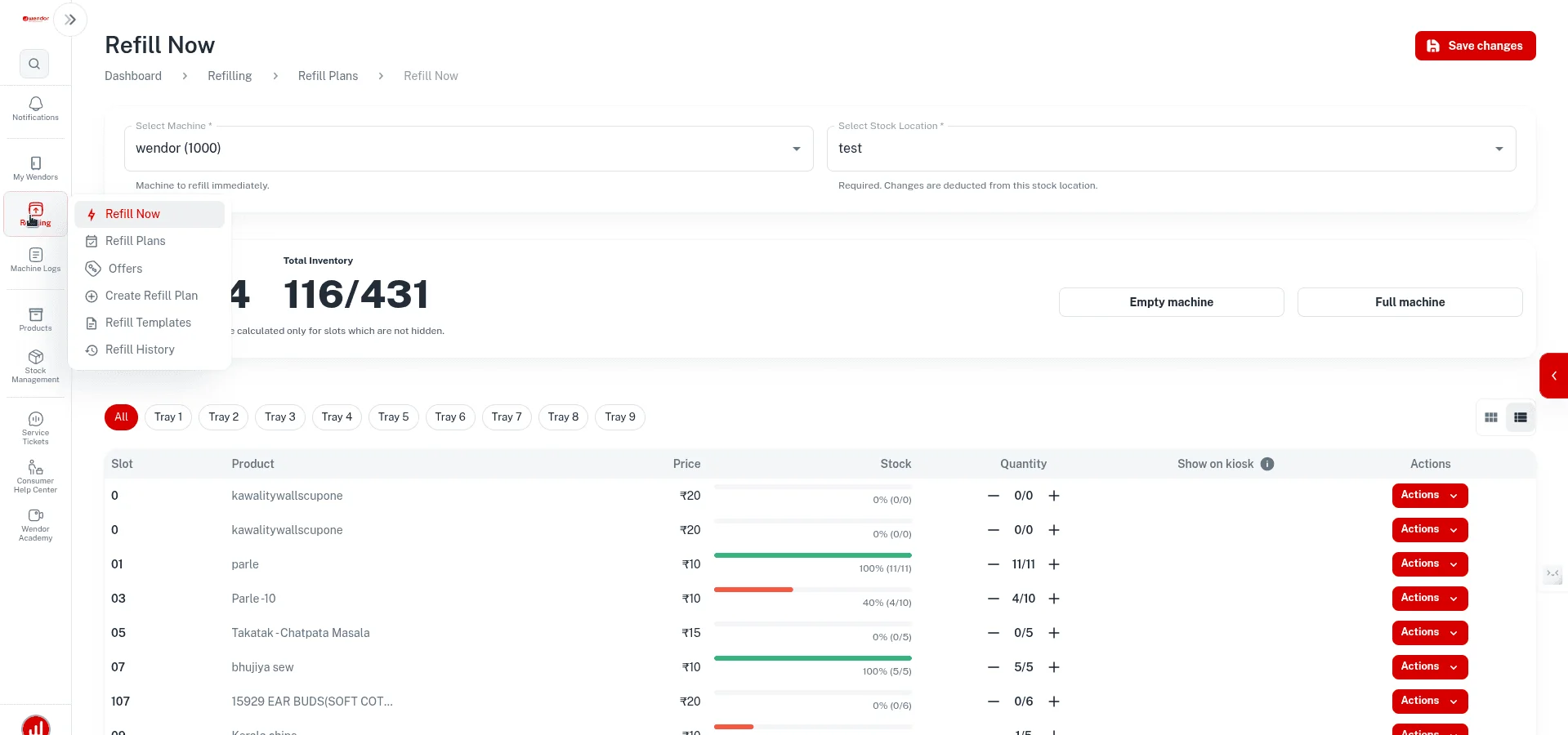

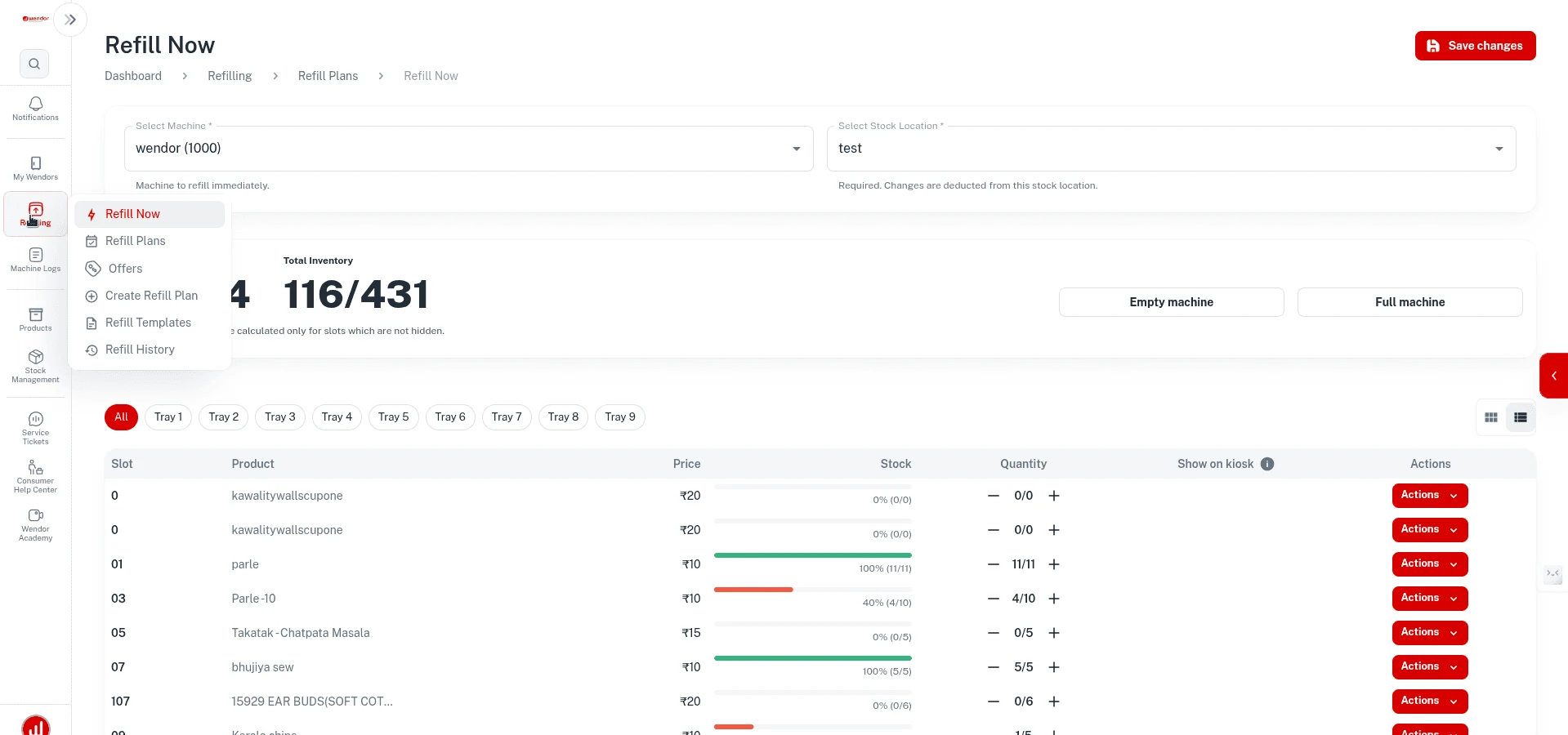

Wendor dashboard showing live stock levels per slot

Wendor platform

Refill with a plan, not a guess.

Live stock and sales for every slot tell your team exactly what to bring before they leave. Payments settle straight to your bank.

Built in

Everything the job needs.

Reliable hardware and the Wendor platform, at a price that makes a first machine an easy decision.

10-inch touchscreen

Clear menus and prices at eye level.

350+ products

Fewer refill visits per week.

6 trays, 60 SKUs

Adjustable for packets, bottles and cans.

4°C to 25°C

Cooling for drinks and snacks alike.

UPI checkout

Cashless payment in a few seconds.

Direct settlement

Sales go straight to your bank account.

Live stock

See every slot’s fill level from your phone.

Refill alerts

Restock before popular items run out.

Tech specs

Orion 10

Download brochure

Dimensions: H 1,940 mm × W 880 mm × D 760 mm
Weight: 225 kg
Display: 10-inch touchscreen
Capacity: 350+ products
Varieties: Up to 60 SKUs
Trays: 6
Temperature: 4°C to 25°C
Payments: UPI; direct settlement to your bank
Power: Refrigerated 422 W, normal 24 W
Voltage: 110–120 V / 220–240 V, 50–60 Hz

Start with Orion 10.

Tell us about your location and we’ll recommend a stock plan and a price for your first machine.

Get a quote Download brochure
